Rig Site and 3D Surveys
Site surveys are crucial for gathering accurate information when planning operations and designing equipment for offshore use.
-
In-Place 3D modelling used with 3d Laser Scans to clash check prior to installing sub-cellar deck replacement flooring.
-

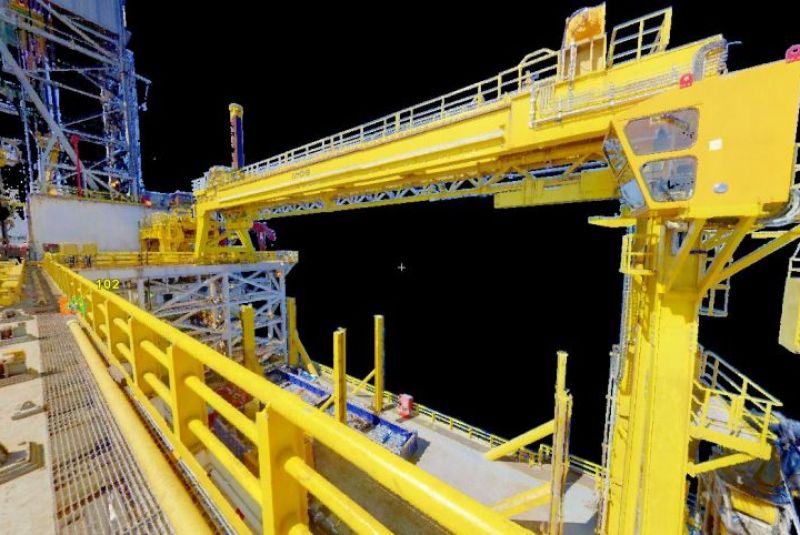

3D laser scans of the Valaris DPS-1 drilling rig
-

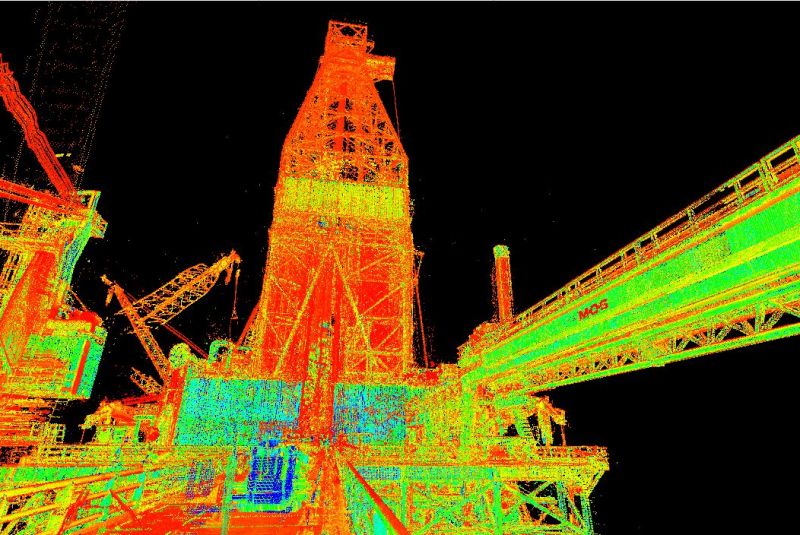

Detailed design using 3D Point Cloud modelling on the DPS1 MODU
-
-
3D modelling of piping designs
-
-
-
-
3D modelling and finished project.
ICON has extensive experience utilizing 3D laser scans to create a 3D model of rig and design equipment to interface with rig structures.
The 3D models allow our design team to retrieve hard to reach dimensions with certainty that the accuracy of the measurement is correct.
Our team can provide:
- Engineers and technicians to perform site surveys and reports
- 3D laser scans and modelling
- Clash checks
- Routing of pipework and umbilicals
- Interfacing checks
- Installation sequences and lifting plans
Final installation compared with 3D Scan and Point Cloud modelling.
Prior modelling and the finished item.
